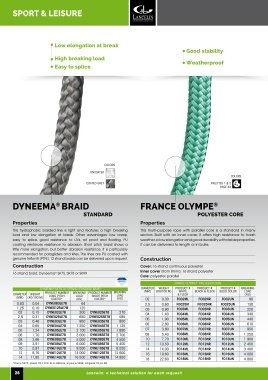

Page 28 - ROPES CATALOGUE - LANCELIN

SPORT & LEISURE SPORT & LEISURE

Low elongation at break Case
STUDY
Good stability
High breaking load Abrasion resistance
Weatherproof
Easy to splice Flexibility

DYNEEMA BRAID
®
Paragliding

Dyneema® lines are used for paragliders,
parachutes and kites. The advantages are low
weight and small diameter and the benefits are
better control and safety.
COLORS
UNCOATED
COLORS COLORS
COATED GREY PALETTES 1 & 2 PALETTES 1 & 2
PAGE 43 PAGE 43

DYNEEMA BRAID FRANCE OLYMPE ® CALLISTO
®
®
STANDARD POLYESTER CORE
Properties Properties Properties
This hydrophobic braided line is light and features a high breaking This multi-purpose rope with parallel core is a standard in many This rope combines resistance to abrasion with flexibility. The FRANCE OLYMPE ®
load and low elongation at break. Other advantages: low creep, sectors. Built with an inner cover, it offers high resistance to harsh braided core makes it easy to splice and fit any application.
easy to splice, good resistance to UVs, rot proof and floating. PU weather, a low elongation and good durability with stable properties. Construction
coating reinforces resistance to abrasion. Short pitch braid shows a It can be delivered to length or in bulks.
little more elongation, but better abrasion resistance. It is particularly Cover: 24 strand continuous polyester Equestrian
recommended for paragliders and kites. The lines are PU coated with Cover: 12 or 16 strand continuous polyester Halters, lead ropes, nosebands and reins are
genuine Teflon® (PTFE). 12 strand braids can be delivered upon request. Construction
made of flexible ropes for comfort of both the
Construction Cover: 16 strand continuous polyester horse and the rider.
Inner cover (from 8mm): 16 strand polyester
®
16 strand braid, Dyneema SK75, SK78 or SK99
Core: polyester, parallel
®
FRANCE OLYMPE POLYESTER CORE
DYNEEMA SK78 16 STRAND STANDARD BRAID DIAMETER WEIGHT PRODUCT # PRODUCT # PRODUCT # BREAKING
®
PRODUCT NUMBER BREAKING PRODUCT NUMBER BREAKING (MM) (KG/100 M) WHITE BLACK & FLECK SOLID COLOR LOAD
DIAMETER WEIGHT LONG PITCH LOAD SHORT PITCH LOAD & FLECK (KG) ®
(MM) (KG/100 M) COATED* (KG) COATED* (KG) 02 0,30 FO02ML FO02NR FO02UN 90 CALLISTO
WEIGHT
0,83 0,04 DYNE083LE78 64 2,5 0,60 FO025M FO025NR FO025UN 130 DIAMETER (KG/100 M) PRODUCT NUMBER BREAKING LOAD HÉLIOS T P.26
(KG)
(MM)
®
1,25 0,10 DYNE0125LE78 125 03 0,90 FO03ML FO03NR FO03UN 220 06 2,90 CALLI06 900
02 0,15 DYNE02LE78 300 DYNE02SE78 270 04 1,40 FO04ML FO04NR FO04UN 340 08 4,40 CALLI08 1 250
2,5 0,31 DYNE025LE78 650 DYNE025SE78 585 05 1,90 FO05ML FO05NR FO05UN 440 10 6,70 CALLI10 1 900
03 0,46 DYNE03LE78 950 DYNE03SE78 850 12 10,80 CALLI12 3 000 Zip line
04 0,65 DYNE04LE78 1 250 DYNE04SE78 1 125 06 2,80 FO06ML FO06NR FO06UN 610 “Les Tyroliens” is an amazing project: 1 300 meter
05 1,24 DYNE05LE78 2 100 DYNE05SE78 1 890 07 3,80 FO07ML FO07NR FO07UN 950 14 13,40 CALLI14 3 600
06 1,70 DYNE06LE78 3 000 DYNE06SE78 2 700 08 5,40 FO08ML FO08NR FO08UN 1 250 16 18,50 CALLI16 5 200 zip line with 153 meter drop! This rope-made zip
08 2,68 DYNE08LE78 5 000 DYNE08SE78 4 500 10 7,70 FO10ML FO10NR FO10UN 1 900 18 23,90 CALLI18 6 400 line installed on a temporary mobile structure is
09 3,91 DYNE09LE78 6 000 DYNE09SE78 5 400 12 10,50 FO12ML FO12NR FO12UN 2 450 20 30,00 CALLI20 8 200 a genuine human and technological challenge.
10 5,97 DYNE10LE78 9 500 DYNE10SE78 8 550 14 14,00 FO14ML FO14NR FO14UN 3 400 22 32,20 CALLI22 9 500
12 8,76 DYNE12LE78 14 000 DYNE12SE78 12 600 16 19,60 FO16ML FO16NR FO16UN 4 000 24 41,30 CALLI24 11 500
14 11,95 DYNE14LE78 16 500 DYNE14SE78 14 850
18 22,60 FO18ML FO18NR FO18UN 4 800 26 48,70 CALLI26 14 500
*Pour le SK75, enlever 78 à la fin de la référence, et pour le SK99, remplacer 78 par 99.
28 Lancelin: a technical solution for each request! Visit our website and find all our products and services: www.lancelin.fr 29
